Fraunhofer Institute for Building Physics IBP

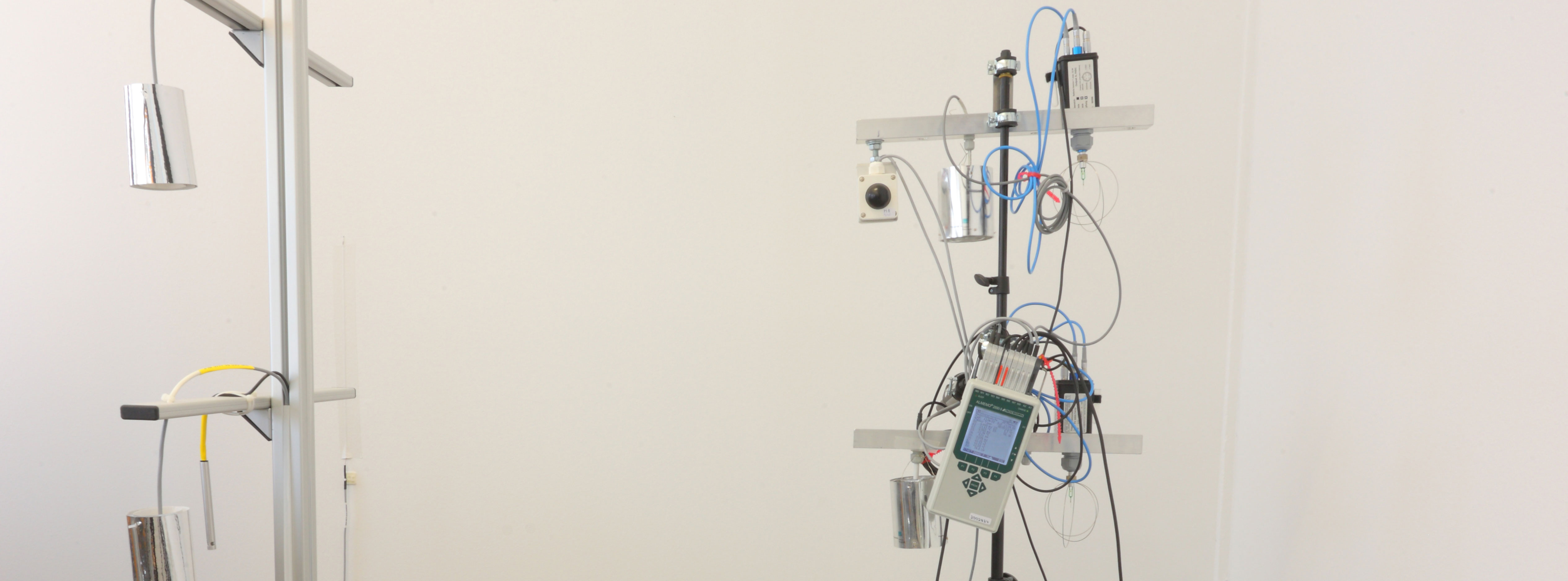

Measuring instrument for monitoring indoor climate comfort components.
Measurement device for indoor environmental comfort components
Energy Efficiency and Indoor Climate
| Measurement | Air temperature, air velocity, air humidity, globe temperature, global solar radiation, carbon dioxide |
| Standard | DIN EN ISO 7730 |
| Measurement objects | Offices, conference and living rooms, automotive, aviation, rail-bound vehicles |
Technical data
| Air temperature | -10 up to +60 °C |
| Air velocity | 0 to 1 m/s, 0 to 5 m/s |
| Air humidity | 5 to 98 % r.h. |
| Globe temperature | -10 up to +60 °C |
| Global solar radiation | 0 to 1300 W/m² |
| Carbon dioxide | 0 to 5000 ppm |
Special feature
| Measurements simultaneously | Temperature measurement radiation shielded. Air temperature and air velocity at three heights, measuring heights between 0.1 and 1.8 m |
More information
- Measurement device on lockable rolls for sliding to different test sites
- Measurement device telescoping to 0.85 m for transport
- Data logger included
