New load-bearing and insulating building material made from cattail (typha)

The agricultural cultivation of cattail (Latin: typha) as a raw material for industrial use has numerous ecological and economic advantages.

Cultivation and environmental protection

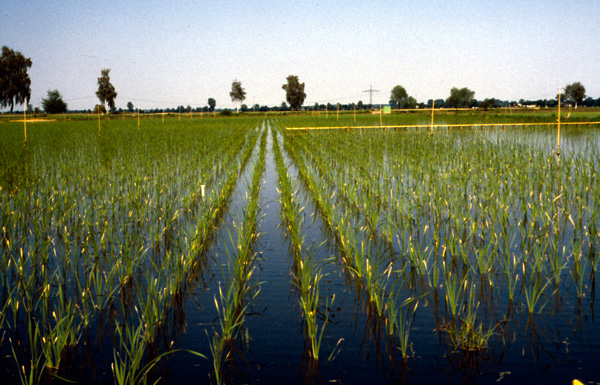

Cattail cultivation in Nieder­mooren
© typha technik Naturbaustoffe
Cattail (lat. Typha) grows fast and is easy to cultivate worldwide.

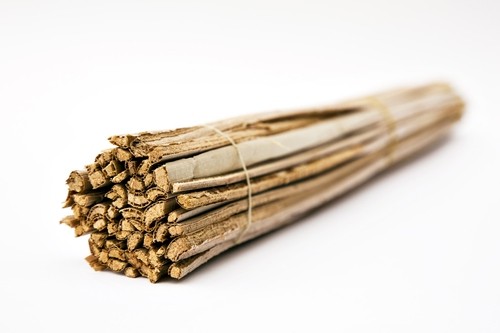

Typha-leaves
© typha technik Naturbaustoffe
The leaves have a fiber-reinforced supporting tissue filled with a soft open-cell spongy mass, giving them outstanding structural strength and excellent insulating properties.

As a result, cattail is predestined as a raw material for industrial use. Typha crops are robust, natural monocultures that produce 15 to 20 tons of dry matter per hectare every year (about 150 - 250 m³ of building material). This corresponds to four to five times the amount native coniferous forests provide. If typha is cultivated as a raw material on Germany's lowland moor soils and valley floors (as nutrient traps, carbon sinks and erosion barriers, for water retention and biotope formation), this would be enough to cover the total demand for insulation and wall building materials. The feasibility of cultivating typha was demonstrated in the project “Cultivation of cattail in fens”, funded by the German Federal Environmental Foundation (DBU) and headed by the Chair of Landscape Ecology at the Technical University of Munich (1998-2001).

Product development

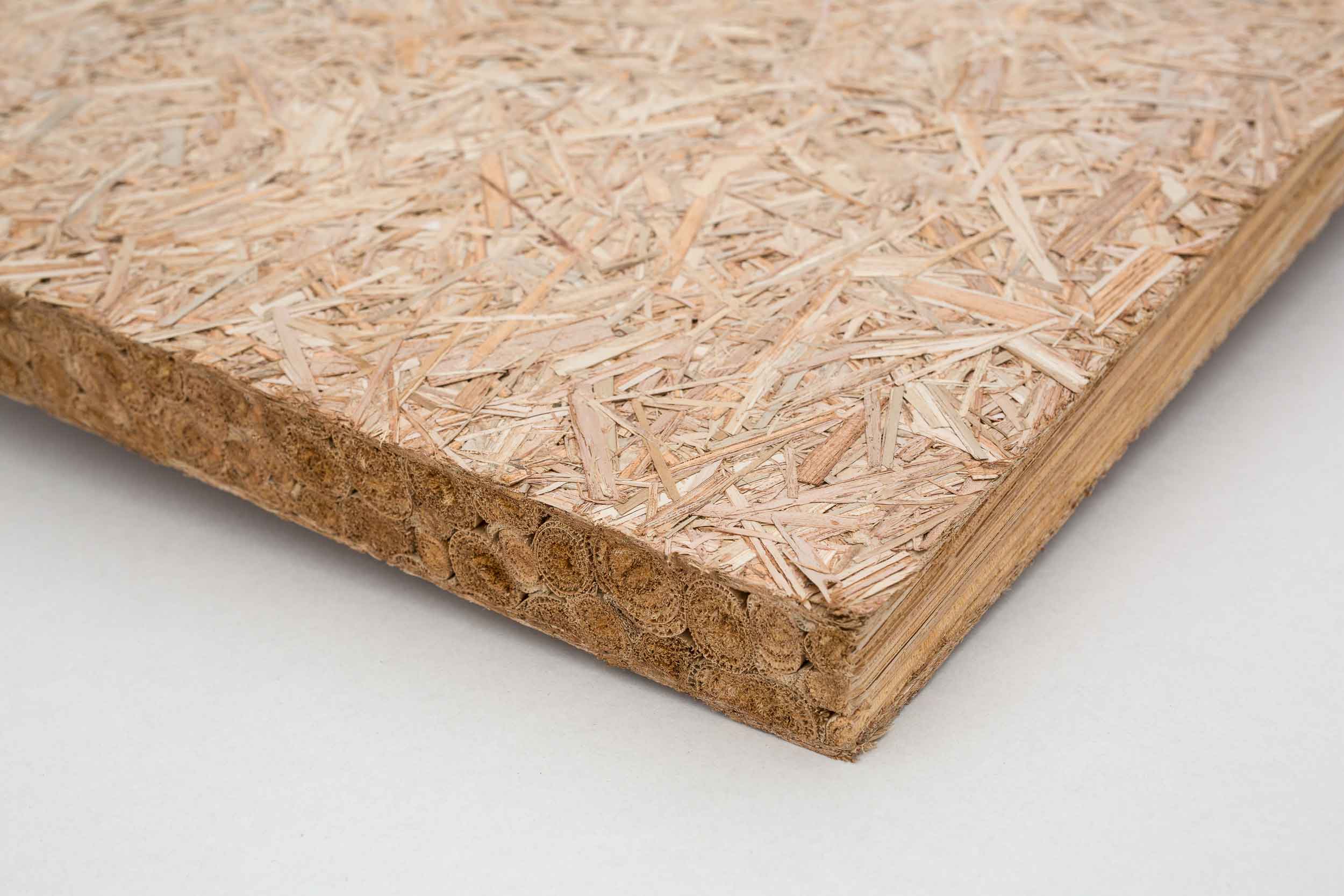

Das Typhaboard
© typha technik Naturbaustoffe
Typhaboard performs both load-bearing and insulation tasks in one layer.

Thanks to cattail’s remarkable structural properties, building materials can be created which offer a combination of insulation and load-bearing functions that is unique on the market The exceptional suitability of the leaf mass for making innovative building materials is due to the plant's structure. The leaves have a fiber-reinforced supporting tissue filled with a soft open-cell spongy mass, giving them outstanding structural strength and excellent insulating properties.

In recent years, in collaboration with the inventor Dipl.-Ing. Werner Theuerkorn, the Fraunhofer Institute for Building Physics IBP has carried out numerous laboratory and field tests on various product developments made of typha.  In the course of the research work, a variety of interesting products were developed, in particular a panel made of mineral-bound, isotropic material.

Product features

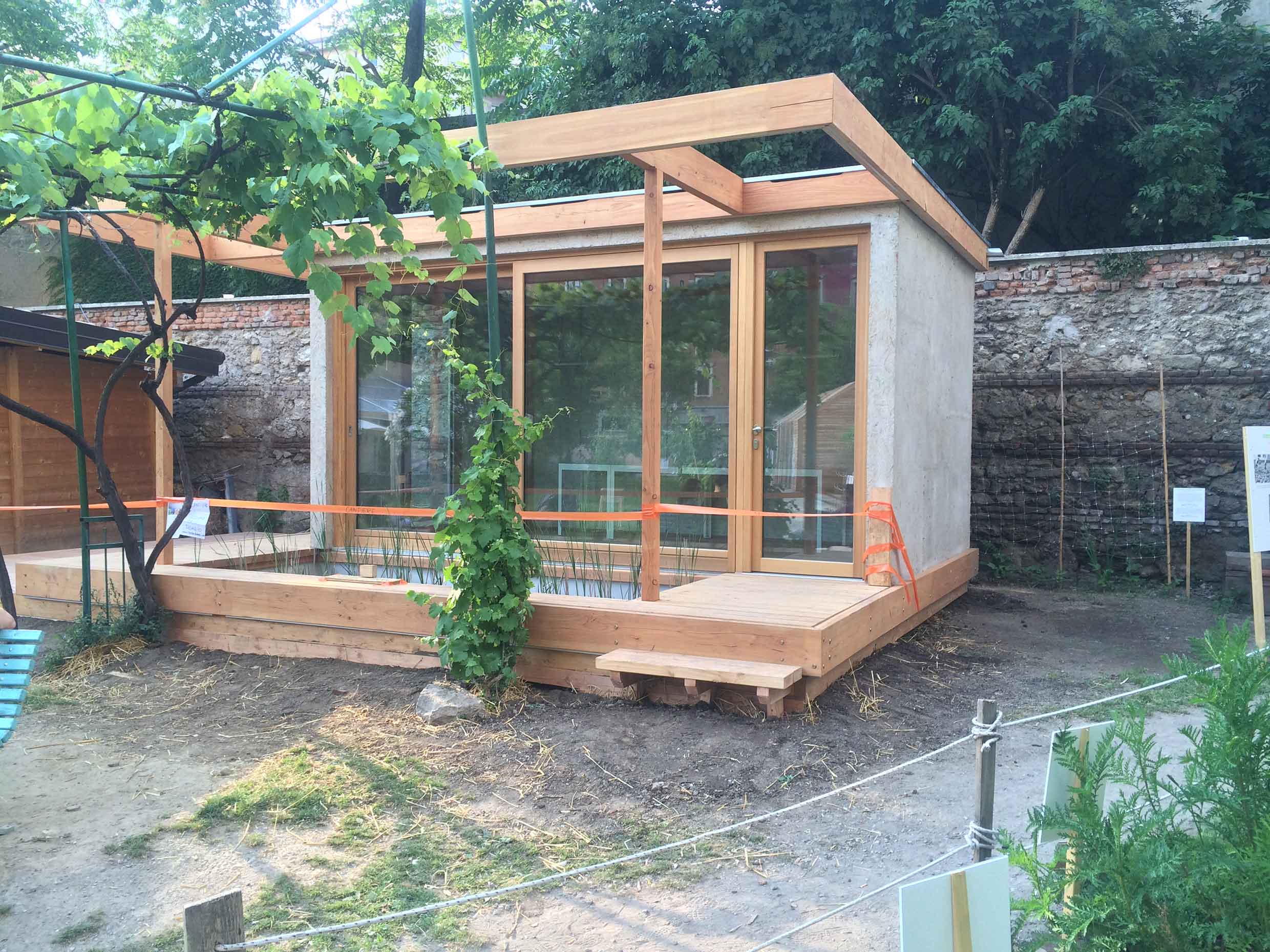

Typhahouse
© Fraunhofer IBP
The typha house was on display during the EXPO 2015 in Milan.

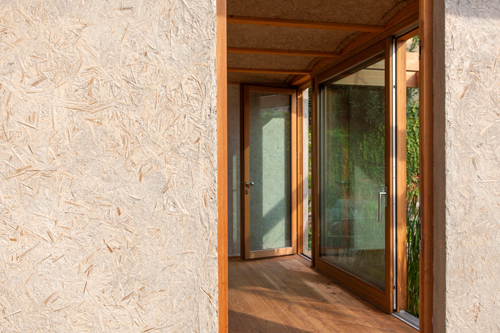

Insight into the typha house
© typha technik Naturbaustoffe
Visitors had the opportunity to see the typha board in action at the EXPO 2015

Despite its low thermal conductivity of 0.052 W/mK, the newly developed magnesite-bonded typhaboard exhibits exceptional strength and dynamic stability, so that it can also be used to overcome static problems.  Moreover, this innovative building material offers many other advantages.

  • Renewable building material with very high resistance to mold growth
  • Superior protection against fire and noise and thermal insulation in summer
  • Easy to process with all common tools
  • Relatively vapor-permeable and capillary active
  • Requires little energy to produce
  • Recyclable

The magnesite-bonded typhaboard is a highly competitive new type of building material, especially if produced in a rational process, thus significantly lowering the price of essential building components.

Example of use with a half-timbered house

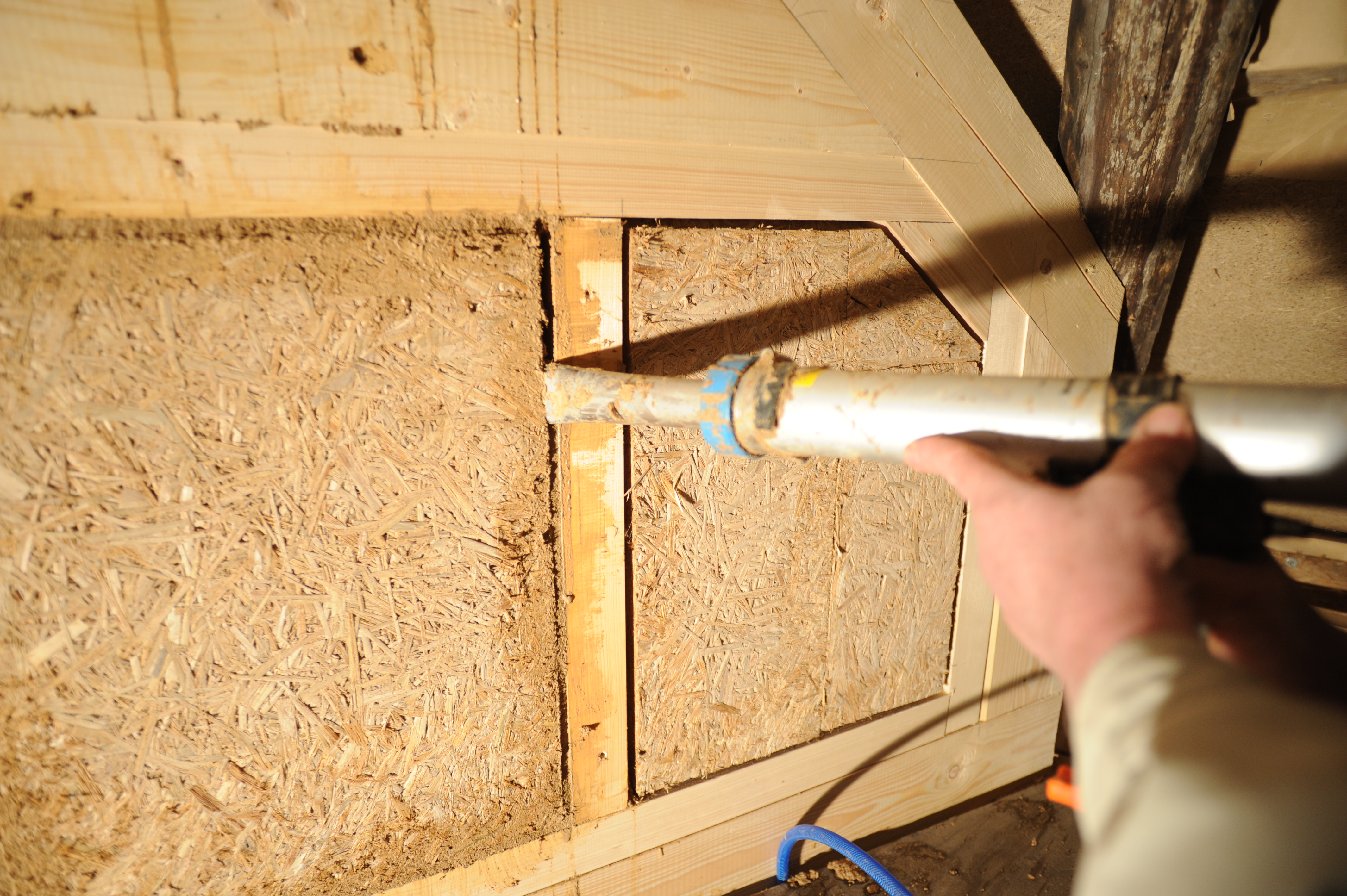

Typha joint mortar is also used to make the components windproof.
© typha technik Naturbaustoffe
Typha joint mortar is also used to make the components windproof.

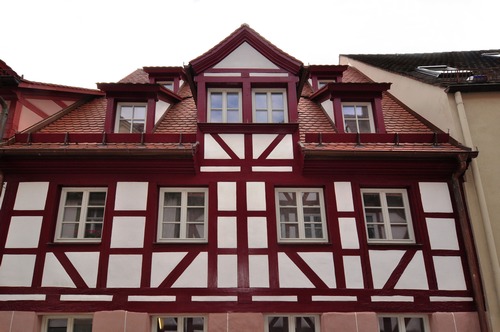

typha half-timbered house
© Fritsch + Knodt & Klug ArchitektInnen
Renovated half-timbered house in Pfeifergasse 9 in Nürnberg.

The half-timbered building in Pfeifergasse 9 in Nürnberg, renovated by Altstadtfreunde Nürnberg e.V., is an asymmetrical building with a gabled roof and an inadequately reinforced supporting structure. The assignment was to reveal the timber frame construction again, to comply with German Energy Conservation Regulations (EnEV 2009) and take into account aspects of the preservation of historical buildings while stabilizing the building at the same time. The typhaboard material used met all these requirements.  The project was funded by the German Environmental Foundation (DBU) and the Bavarian State Office for the Preservation of Historical Monuments.

The typhaboard panels enabled an extremely slim exterior wall with a thickness of 16 cm (plus 4 cm plaster) with wall heating to be constructed.  Because it is so easy to work with and has such a high structural strength, it was no problem to shape the material to the irregular sloping walls. To make it windproof, expanding mortar containing typha was inserted into the joints and cracks in the wood with a cartridge gun. The exterior plaster was applied directly to the typhaboard. A particularly breathable three-layer coating of plaster of calcareous tuff sand and lime reinforced with the umbrella-shaped seeds of cattail was used.

Fraunhofer IBP investigated the suitability of the wall structure over a period of one and a half years and determined a thermal transmittance (U-value) for the infill of 0.26 W/m²K. The U-value of the whole building (infill and timber construction) is 0.31 W/m²K. The low moisture content introduced by the expanding mortar and plaster dried quickly, resulting in a constant moisture value in the timber frame of less than 20 M.-%.
